LAO1 7/16 TKN

Name: LAO1 7/16 TKN
Brand: Timken
SKU: LAO1 7/16 TKN
Price: 699.28 USD
Availability: OutOfStock

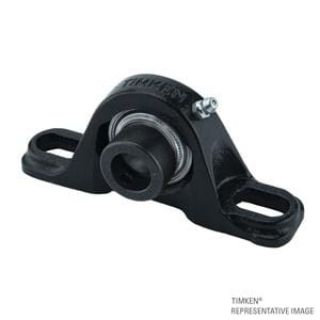

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

LAO1 7/16

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$699.28 / EA

Description

Brand Name

Fafnir®

Type

Heavy Duty

Alternate Supplier #

Applied Industrial Technologies - 101019964
Motion Industries - 00560813

Description

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.

Timken® Fafnir®, LAO1 7/16, Pillow Block Ball Bearing Unit, Heavy Duty, Series: LAO, 1-7/16 in Bore, 6 in Bolt Center-to-Center Length, 2-1/8 in Base to Bore Centerline, 7-9/16 in Overall Length, 2-1/32 in Overall Width, 4-3/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-1/8 in Base Width, Eccentric Locking Device, Labyrinth Seal, Non-Expansion (Fixed), 7520 lb Dynamic/4120 lb Static Load, 250 deg F, 6090 rpm Maximum, Cast Iron, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Features

This is a compact, economic bearing housed unit
All units are supplied with GN-KLLB heavy series wide-inner-ring ball bearing and locking collar

Specifications

Base to Bore Centerline:	2-1/8 in
Base Width:	2-1/8 in
Bolt Center-to-Center Length:	6 in
Bore Diameter:	1-7/16 in
Bore Type:	Round
Expansion Type:	Non-Expansion (Fixed)
Finish:	Uncoated
Load Capacity:	7520 lb Dynamic/4120 lb Static
Locking Device:	Eccentric
Material:	Cast Iron
Maximum Speed:	6090 rpm
Mounting Type:	Two-Bolt Base
Overall Height:	4-3/32 in
Overall Length:	7-9/16 in
Overall Width:	2-1/32 in
Seal Type:	Labyrinth
Series:	LAO
Temperature Rating:	250 deg F
