LB200G OZG

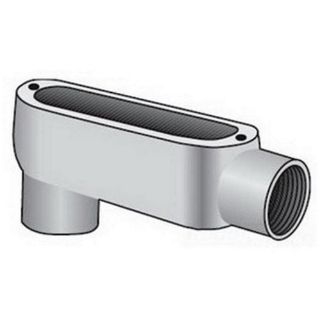

Picture of LB200G OZG
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
LB-200G
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$173.84 / EA

Description

Brand Name

O-Z/Gedney

Type

Type LB

Description

O-Z/Gedney™ Spec 5 conduit bodies, covers and gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.
O-Z/Gedney Spec 5™ Conduit Body, Type LB, 2 in Hub, 2 Hubs, 73 cu-in Capacity, Form 35 Form, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Hot Dipped Galvanized, 10-5/8 in L x 3-1/4 in W Dimensions

Application

For use to serve as pulling fittings, make bends in conduit system, provide openings for splicing, connect and change direction of conduit runs, allow connections for branch runs, IMC and rigid conduit

Standards

ARRA Compliant | UL 514A File No. E18095 | CSA C22.2 No. 18 009795 | Federal Specification A-A-50563 | NEC/CEC Hazardous Locations Class 1 Division 2 Per NEC Section 501-4(B), NEMA:FB-1, FB-2.10

Features

  • Smooth, rounded integral bushings in hubs protect conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Form 35™ malleable iron Unilets™ are high tensile strength and ductility
  • High corrosion resistance, high impact and shock resistance
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • 1/2 to 3 in blank covers are domed for extra wiring space
  • Raintight when an Appleton™ cover and gasket are installed
  • Exclusive built-in easy pulling rollers in type lb (1-1/4 to 4), eliminate damage when cable is pulled through hubs

Specifications

Capacity:73 cu-in
Connection Type:Tapered FNPT
Country of Origin:MX
Dimensions:10-5/8 in L x 3-1/4 in W
Finish:Hot Dipped Galvanized
Form:Form 35
Hub Size:2 in
Material:Malleable Iron
Mounting Type:Surface
Number of Hubs:2

Products Specifications

Brand Name
O-Z/Gedney
Connection
Tapered FNPT
Material
Malleable Iron
Size
2 in
Type
Conduit Outlet Body
