Actual Product May Vary From Image

LB50ATW OZG

Name: LB50ATW OZG
Brand: Appleton
SKU: LB50ATW OZG
Price: 19.50 USD
Availability: OutOfStock

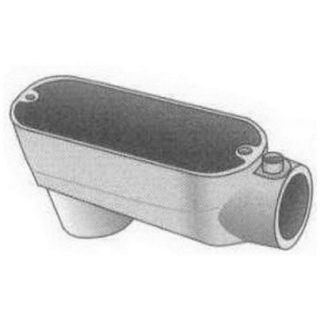

O-Z/Gedney LB50ATW Type LB Conduit Outlet Body, 1/2 in Hub, 4.3 cu-in Capacity, Die Cast Copper Free Aluminum, Aluminum Enamel

Manufacturer: Appleton

Manufacturer part number: LB50ATW

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$19.50

Qty:

Product Details

Brand Name

O-Z/Gedney

Type

Type LB

Description

O-Z/Gedney Aluminum Conduit Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

O-Z/Gedney Conduit Outlet Body, Type LB, 1/2 in Hub, 2 Hubs, 4.3 cu-in Capacity, NEMA FB-1/FB-2.1 Enclosure, Setscrew Connection, Die Cast Copper Free Aluminum, Aluminum Enamel, 4-1/2 in L x 1-1/4 in W

Application

For EMT thinwall conduit

Standards

UL 514A File No. E18095 | C22.2 No. 18/009795 Certified | Federal Specification A-A-50563 | Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)

Features

Tapered threaded hubs (NPT)
Raintight when used with gasketed covers
Internal volume and maximum wire capacity clearly marked on castings
Suitable for wet locations when used with gasketed covers

Specifications

Capacity:	4.3 cu-in
Connection Type:	Setscrew
Country of Origin:	IN
Dimensions:	4-1/2 in L x 1-1/4 in W
Enclosure:	NEMA FB-1/FB-2.1
Finish:	Aluminum Enamel
Hub Size:	1/2 in
Material:	Die Cast Copper Free Aluminum
Number of Hubs:	2
