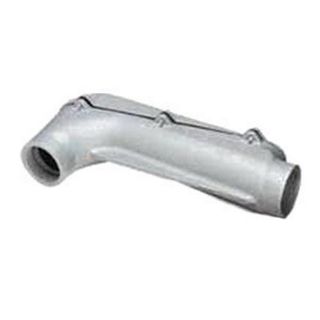

LB6X350M OZG

Name: LB6X350M OZG
Brand: Appleton
SKU: LB6X350M OZG
Price: 1,293.15 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

LB6X-350M

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$1,293.15 / EA

Description

Brand Name

O-Z/Gedney

Type

Type LB Mogul

Description

O-Z/Gedney Mogul Conduit Bodies, Covers and Gaskets feature larger body sizes to facilitate the pulling of large and heavy conductors. They have specially designed raised cast covers that provide additional wiring area. These conduit bodies are ideal for pulling straight, 45 or 90 deg angle turns and/or making taps and splices.

O-Z/Gedney Conduit Outlet Body, Type LB Mogul, 3-1/2 in Hub, 2 Hubs, 500 cu-in Capacity, NEMA FB-1/FB-2.1 Enclosure, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Triple Coated, 24.31 in L x 7 in W x 10.25 in H

Application

Rigid/IMC Conduit Applications

Standards

UL 514A File No. E18095 | C22.2 No. 18/009795 Certified | Federal Specification A-A-50563 | Meets NEC Section 314.28 | Hazardous Locations Class 1, Div 2 Per NEC Section 501-4(B)

Features

Roomy interiors more wiring space
Smooth, rounded integral bushing in hubs protects conductor insulation
Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
Sizes with flat back design ideal where fitting is mounted flat against surface
Smooth integral hub bushings to protect conductor insulation when pulling

Specifications

Capacity:	500 cu-in
Connection Type:	Tapered FNPT
Country of Origin:	MX
Dimensions:	24.31 in L x 7 in W x 10.25 in H
Enclosure:	NEMA FB-1/FB-2.1
Finish:	Triple Coated
Hub Size:	3-1/2 in
Material:	Malleable Iron
Mounting Type:	Surface
Number of Hubs:	2
