LB97SA APN

Name: LB97SA APN
Brand: Appleton
SKU: LB97SA APN
Price: 713.50 USD
Availability: OutOfStock

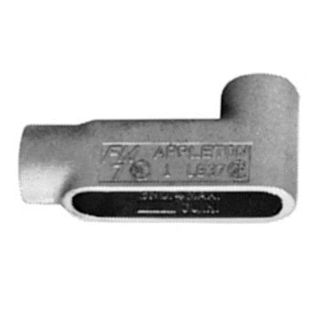

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

LB97-SA

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$713.50 / EA

Description

Brand Name

Appleton®

Type

Type LB

Description

Appleton® FM7™ Conduit Outlet Bodies are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

Appleton® UNILETS™ Conduit Outlet Body, Type LB, 3-1/2 in Hub, 2 Hubs, 218 cu-in, 7, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Cast Aluminum, Epoxy Powder Coated, 12.69 in L x 6.94 in W x 6.56 in H

Application

For Rigid Steel/Aluminum and IMC Conduit

Standards

UL 514A/514B/E2527 | CSA C22.2 No. 18.3/065183

Features

Smooth, rounded integral bushing in hubs protects conductor insulation
Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
Wedge-Lok™ form-in-place covers with integral gasket are approved for use in wet locations
Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
Unique Wedge-Lok™ clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions
Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
Fits flush and snug against flat surfaces for more stable installation
Smooth hub bushings and cover openings protect conductor insulation
Smooth hub openings allow easy conduit joining
Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
Cover screws and clips are captive to prevent loss
Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body

Specifications

Capacity:	218 cu-in
Connection Type:	Tapered FNPT
Country of Origin:	MX
Dimensions:	12.69 in L x 6.94 in W x 6.56 in H
Enclosure:	NEMA FB-1
Finish:	Epoxy Powder Coated
Form:	7
Hub Size:	3-1/2 in
Material:	Cast Aluminum
Mounting Type:	Surface
Number of Hubs:	2
