LBD125M APN

Name: LBD125M APN
Brand: Appleton
SKU: LBD125M APN
Price: 157.86 USD
Availability: OutOfStock

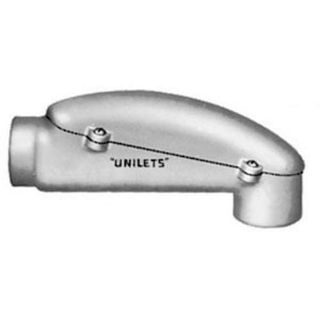

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

LBD125-M

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$157.86 / EA

Description

Brand Name

Appleton®

Type

Type LBD

Description

Appleton® LBD and LBDN Pulling Fittings facilitate the pulling of large, heavy, and difficult to bend conductors. They are designed to make 90 deg bends in conduit and provide straight pull through via hubs in either direction.

Appleton® UNILETS™ Pulling Fitting, Type LBD, 1-1/4 in Hub, 2 Hubs, 37 cu-in Capacity, FNPT Connection, Malleable Iron, Triple Coated Finish, Gray, 8.5 in L x 3.38 in W x 4.75 in H Dimensions

Application

Rigid Metal and IMC Conduit Applications

Standards

UL 514B File No. E2527 | CSA C22.2 No. 18.3/065183

Features

Serve as pulling fittings - ideal for heavy, difficult to bend conductors
Make 90 deg bends in conduit straight pull through hubs in either direction
Use as service entrance fitting

Specifications

Capacity:	37 cu-in
Color:	Gray
Connection Type:	FNPT
Country of Origin:	MX
Dimensions:	8.5 in L x 3.38 in W x 4.75 in H
Finish:	Triple Coated
Hub Size:	1-1/4 in
Material:	Malleable Iron
Number of Hubs:	2
