LC225 HUB 65MM N/KW LOV

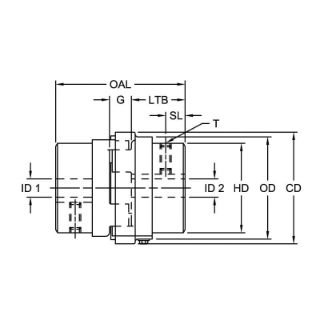

Picture of LC225 HUB 65MM N/KW LOV
Actual Product May Vary From Image

Product Details

Manufacturer:
Lovejoy
Manufacturer part number:
68514458584
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Lovejoy®

Type

Type LC Style 2

Description

Lovejoy® Jaw Coupling Hub, Type LC Style 2, LC225 Coupling, 65 mm Bore, 127 mm Diameter Hub, 81.03 mm Hub Length, 4200 rpm Maximum, 55.63 mm Length Through Bore, Sintered Iron, Metallic

Standards

ECCN EAR99

Features

  • Radially removable insert
  • Collar allows for maximum speed of 3600 rpm
  • Collar manufactured from 1018 Steel
  • Without keyway
  • Without collar and hardware

Specifications

Bore Diameter:65 mm
Country of Origin:US
Coupling Size:LC225
Finish:Metallic
Hub Diameter:127 mm
Hub Length:81.03 mm
Length Through Bore:55.63 mm
Material:Sintered Iron
Maximum Speed:4200 rpm
