LCA1-56-E PAN

Name: LCA1-56-E PAN
Brand: Panduit
SKU: LCA1-56-E PAN
Price: 5.60 USD
Availability: OutOfStock

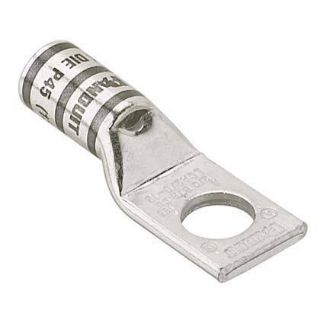

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCA1-56-E

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$5.60 / EA

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCA1-56-E, Compression Connector Lug, 1-Hole Type LCA, Code Copper Conductor, 1 AWG Conductor, Die Code: P37, 35 kV, 5/16 in Stud, Straight Tongue, 0.7 in W x 0.11 in THK Tongue, 1.92 in Overall Length, Standard Barrel, 0.36 in ID x 0.47 in OD x 0.88 in L Barrel, Specifications: 23.8 mm L Wire Strip, Tin Plated Finish, 90 deg C, 0.34 in Mounting Hole, Green

Application

For use to provide permanent terminations for a variety of power and grounding applications

Standards

Features

Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.36 in ID x 0.47 in OD x 0.88 in L
Barrel Type:	Standard
Color:	Green
Conductor Size:	1 AWG
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P37
Material:	Copper
Mounting Hole Size:	0.34 in
Overall Length:	1.92 in
Series:	LCA
Specifications:	15/16 in L Wire Strip, Tin Plated Finish
Stud Size:	42.491 in
Temperature Rating:	90 deg C
Tongue Size:	0.7 in W x 0.11 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
