Actual Product May Vary From Image

LCA2-38-Q PAN

Name: LCA2-38-Q PAN
Brand: Panduit
SKU: LCA2-38-Q PAN
Price: 4.68 USD
Availability: InStock

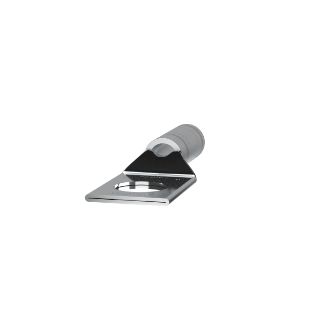

Panduit® LCA2-38-Q 1-Hole Type LCA Compression Connector Lug, 2 AWG Conductor Code Copper Conductor, Die Code: P33, 3/8 in Stud

Manufacturer: Panduit

Manufacturer part number: LCA2-38-Q

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	50	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$4.68

Qty:

Product Details

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCA2-38-Q, Compression Connector Lug, 1-Hole Type LCA, Code Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 3/8 in Stud, Straight Tongue, 0.66 in W x 0.1 in THK Tongue, 1.97 in Overall Length, Standard Barrel, 0.31 in ID x 0.42 in OD x 0.88 in L Barrel, Specifications: 23.8 mm L Wire Strip, Tin Plated Finish, 90 deg C, 0.41 in Mounting Hole, Brown

Application

For use with stranded copper conductors

Standards

Features

Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.31 in ID x 0.42 in OD x 0.88 in L
Barrel Type:	Standard
Color:	Brown
Conductor Size:	2 AWG
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P33
Material:	Copper
Mounting Hole Size:	0.41 in
Overall Length:	1.97 in
Series:	LCA
Specifications:	15/16 in L Wire Strip, Tin Plated
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	0.66 in W x 0.1 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
