LCA2/0-12-X PAN

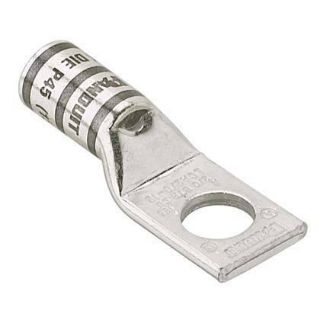

Picture of LCA2/0-12-X PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCA2/0-12-X
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$6.75 / EA

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCA2/0-12-X, Compression Connector Lug, 1-Hole Type LCA, Code Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 1/2 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 2.39 in Overall Length, Standard Barrel, 0.45 in ID x 0.58 in OD x 0.98 in L Barrel, Specifications: 27 mm L Wire Strip, Tin Plated Finish, 90 deg C, 0.53 in Mounting Hole, Black

Application

For use with stranded copper conductors

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65-13 | NEBS Level 3 | RoHS Compliant | UL 486A/486B File No. E52164

Features

  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion

Specifications

Barrel Size:0.45 in ID x 0.58 in OD x 0.98 in L
Barrel Type:Standard
Color:Black
Conductor Size:2/0 AWG
Conductor Type:Code Copper
Country of Origin:MX
Die Code:P45
Material:Copper
Mounting Hole Size:0.53 in
Overall Length:2.39 in
Series:LCA
Specifications:1-1/16 in L Wire Strip, Tin Plated
Stud Size:1/2 in
Temperature Rating:90 deg C
Tongue Size:0.85 in W x 0.13 in THK
Tongue Type:Straight
Voltage Rating:35 kV
