LCA2/0-14H-X PAN

Name: LCA2/0-14H-X PAN
Brand: Panduit
SKU: LCA2/0-14H-X PAN
Price: 10.42 USD
Availability: OutOfStock

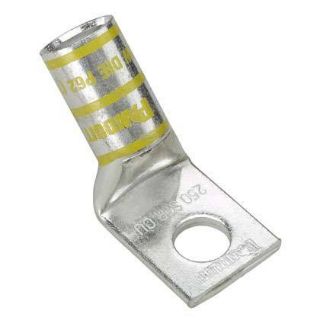

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCA2/0-14H-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$10.42 / EA

This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCA2/0-14H-X, Compression Connector Lug, 1-Hole Type LCA-H, 2/0 AWG Conductor, Die Code: P45, 35 kV, 1/4 in Stud, 45 deg Tongue, 0.85 in W x 0.13 in THK Tongue, 1.77 in Overall Length, Standard Barrel, 0.45 in ID x 0.58 in OD x 0.98 in L Barrel, Specifications: 27 mm L Wire Strip, 90 deg C, 0.27 in Mounting Hole, Tin Plated Copper, Black, 1.41 in H Dimensions

Application

For stranded copper conductors

Standards

Features

Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.45 in ID x 0.58 in OD x 0.98 in L
Barrel Type:	Standard
Color:	Black
Conductor Size:	2/0 AWG
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P45
Dimensions:	1.41 in H
Material:	Tin Plated Copper
Mounting Hole Size:	0.27 in
Overall Length:	1.24 in
Series:	LCA
Specifications:	1-1/16 in L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.85 in W x 0.13 in THK
Tongue Type:	45 deg
Voltage Rating:	35 kV
