LCA250-38H-X PAN

Name: LCA250-38H-X PAN
Brand: Panduit
SKU: LCA250-38H-X PAN
Price: 16.65 USD
Availability: OutOfStock

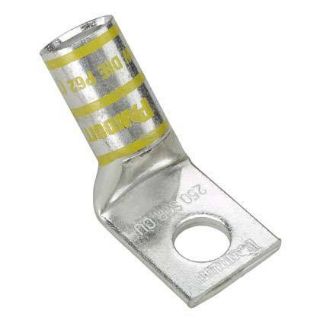

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCA250-38H-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$16.65 / EA

This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCA250-38H-X, Lug Compression Connector, 1-Hole Type LCA-H, 250 kcmil Conductor, Die Code: P62, 35 kV, 3/8 in Stud, 45 deg Tongue, 1.17 in W x 0.14 in THK Tongue, 2.13 in Overall Length, Standard Barrel, 0.63 in ID x 0.77 in OD x 1.25 in L Barrel, Specifications: 1-5/16 in L Wire Strip, 90 deg C, Tin Plated Copper, Yellow

Application

For stranded copper conductors

Standards

Features

Color coded bands for proper die selection and crimp placement
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
For use with stranded copper conductors

Specifications

Barrel Size:	0.63 in ID x 0.77 in OD x 1.25 in L
Barrel Type:	Standard
Color:	Yellow
Conductor Size:	250 kcmil
Conductor Type:	Stranded Copper
Country of Origin:	MX
Die Code:	P62
Material:	Tin Plated Copper
Mounting Hole Size:	1.31 in
Overall Length:	2.13 in
Series:	LCA
Specifications:	1-5/16 in L Wire Strip
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1.17 in W x 0.14 in THK
Tongue Type:	45 deg
Voltage Rating:	35 kV
