LCA300-38-X PAN

Name: LCA300-38-X PAN
Brand: Panduit
SKU: LCA300-38-X PAN
Price: 12.24 USD
Availability: OutOfStock

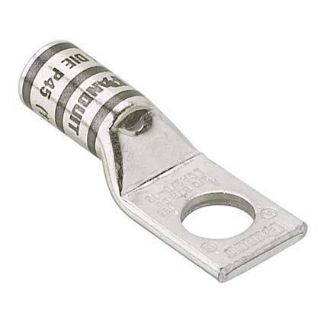

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCA300-38-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$12.24 / EA

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCA300-38-X, Barrel Lug, Standard, Series: LCA, Copper Conductor, 300 kcmil Conductor, Die Code: P66, 35 kVAC, 3/8 in Stud, Standard Tongue, 1.19 in W x 0.16 in THK Tongue, 90 deg C, 3/8 in Mounting Hole, White, 2.94 in L x 1.19 in W Dimensions

Application

For use with stranded copper conductors

Standards

Features

Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
UL Listed and CSA Certified to 35 KV and temperature rated to 90 deg C when crimped with Panduit and specified competitor crimping tools and dies
UL Listed and CSA Certified for wide wire range-taking capability when crimped with Panduit® Uni-Die dieless crimping tools
Standard barrel
1.14 in barrel length
P66 die index no
1-1/2 in wire strip length
Straight tongue angle
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	1.44 in L
Barrel Type:	Standard
Color:	White
Conductor Size:	300 kcmil
Conductor Type:	Copper
Country of Origin:	MX
Die Code:	P66
Dimensions:	2.94 in L x 1.19 in W
Material:	Copper
Mounting Hole Size:	1-1/2 in
Overall Length:	2.94 in
Series:	LCA
Specifications:	Straight Tongue, Tin Plated Finish
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1.19 in W x 0.16 in THK
Tongue Type:	Standard
Voltage Rating:	35 kVAC
