LCA300-58-X PAN

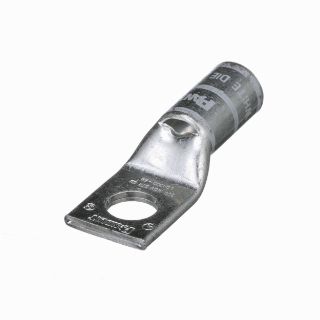

Picture of LCA300-58-X PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCA300-58-X
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$12.50 / EA

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCA300-58-X, Lug Compression Connector, 1-Hole Type LCA, 300 kcmil Conductor, Die Code: P66, 35 kV, 5/8 in Stud, Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 3.26 in Overall Length, Standard Barrel, 0.65 in ID x 0.81 in OD x 1.44 in L Barrel, Specifications: 1-1/2 in L Wire Strip, 90 deg C, Tin Plated Copper, White

Application

For use with stranded copper conductors applications

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65-13 | NEBS Level 3 | RoHS Compliant | UL File No. 486A | UL File No. 486B | UL File No. E52164

Features

  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:0.65 in ID x 0.81 in OD x 1.44 in L
Barrel Type:Standard
Color:White
Conductor Size:300 kcmil
Conductor Type:Stranded Copper
Country of Origin:MX
Die Code:P66
Material:Tin Plated Copper
Mounting Hole Size:1-1/2 in
Overall Length:3.26 in
Series:LCA
Specifications:1-1/2 in L Wire Strip
Stud Size:5/8 in
Temperature Rating:90 deg C
Tongue Size:1.19 in W x 0.16 in THK
Tongue Type:Straight
Voltage Rating:35 kV
