LCA6-38F-L PAN

Name: LCA6-38F-L PAN
Brand: Panduit
SKU: LCA6-38F-L PAN
Price: 3.03 USD
Availability: OutOfStock

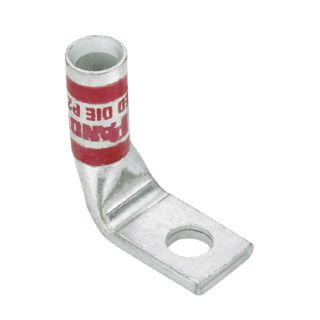

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCA6-38F-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$3.03 / EA

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCA6-38F-L, Lug Compression Connector, 1-Hole Type LCA-F, 6 AWG Conductor, Die Code: P24, 35 kV, 3/8 in Stud, 90 deg Tongue, 0.84 in L x 0.62 in W x 0.06 in THK Tongue, 1-1/4 in Overall Length, Standard Barrel, 0.22 in ID x 0.31 in OD x 0.81 in L Barrel, Specifications: 7/8 in L Wire Strip, 90 deg C, Tin Plated Copper, Blue

Application

For providing permanent terminations for a variety of power and grounding applications

Standards

Features

Color coded bands for proper die selection and crimp placement
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.22 in ID x 0.31 in OD x 0.81 in L
Barrel Type:	Standard
Color:	Blue
Conductor Size:	6 AWG
Conductor Type:	Stranded Copper
Country of Origin:	MX
Die Code:	P24
Material:	Tin Plated Copper
Mounting Hole Size:	42.954 in
Overall Length:	1-1/4 in
Series:	LCA
Specifications:	7/8 in L Wire Strip
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	0.62 in W x 0.06 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
