LCAF2/0-38F-X PAN

Name: LCAF2/0-38F-X PAN
Brand: Panduit
SKU: LCAF2/0-38F-X PAN
Price: 11.07 USD
Availability: OutOfStock

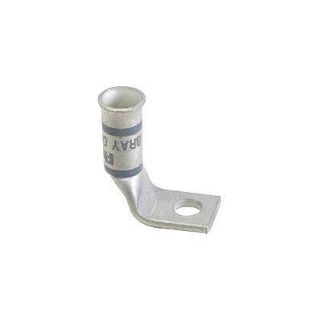

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCAF2/0-38F-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$11.07 / EA

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCAF2/0-38F-X, Compression Connector Lug, 1-Hole Type LCAF-F, Flexible Conductor, 2/0 AWG Conductor, Die Code: P50, 35 kV, 3/8 in Stud, 90 deg Tongue, 0.84 in L x 0.96 in W x 0.13 in THK Tongue, 1.77 in Overall Length, Standard/Flared Barrel, 0.51 in ID x 0.73 in OD x 1.35 in L Barrel, Specifications: 36.5 mm L Wire Strip, 90 deg C, 0.41 in Mounting Hole, Tin Plated Copper, Orange, 2.03 in H Dimensions

Application

For stranded copper and diesel locomotive code conductors

Standards

Features

Can be used with flex conductor class K, m and diesel locomotive
Flared entry prevents bent back strands when inserting fine strand conductor into barrel
Color coded barrels marked with Panduit® die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.51 in ID x 0.73 in OD x 1.35 in L
Barrel Type:	Standard/Flared
Color:	Orange
Conductor Size:	2/0 AWG
Conductor Type:	Copper
Country of Origin:	MX
Die Code:	P50
Dimensions:	2.03 in H
Material:	Tin Plated Copper
Mounting Hole Size:	0.41 in
Overall Length:	1.77 in
Series:	LCAF
Specifications:	36.5 mm L Wire Strip
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	0.84 in L x 0.96 in W x 0.13 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
