LCAF2/0-38H-X PAN

Name: LCAF2/0-38H-X PAN
Brand: Panduit
SKU: LCAF2/0-38H-X PAN
Availability: OutOfStock

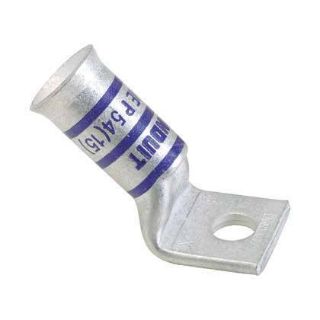

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCAF2/0-38H-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCAF2/0-38H-X, Compression Lug, 1-Hole Type LCAF-H, Series: LCAF, Flexible Copper Conductor, 2/0 AWG Conductor, Die Code: P50, 35 kV, 3/8 in Stud, 45 deg Round Tongue, 0.96 in W x 0.13 in THK Tongue, 2.14 in Overall Length, Standard/Flared Barrel, 0.36 in ID x 0.55 in OD x 0.88 in L Barrel, Specifications: 1.43 in L Wire Strip, Tin Plated, 90 deg C, Orange

Application

For stranded copper conductors

Standards

Features

Can be used with flex conductor class K, M and diesel locomotive
Flared entry prevents bent back strands when inserting fine strand conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin-plated to inhibit corrosion
UL Listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:	0.36 in ID x 0.55 in OD x 0.88 in L
Barrel Type:	Standard/Flared
Color:	Orange
Conductor Size:	2/0 AWG
Conductor Type:	Copper
Country of Origin:	MX
Die Code:	P50
Material:	Copper
Mounting Hole Size:	14-3/8 in
Overall Length:	1.98 in
Series:	LCAF
Specifications:	1.43 in L Wire Strip, Tin Plated
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	0.96 in W x 0.13 in THK
Tongue Type:	45 deg
Voltage Rating:	35 kV
