LCAF350-1-6 PAN

Name: LCAF350-1-6 PAN
Brand: Panduit
SKU: LCAF350-1-6 PAN
Availability: OutOfStock

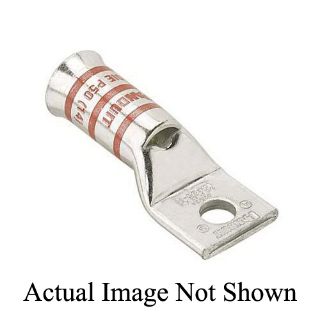

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCAF350-1-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 6

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCAF350-1-6, Compression Connector Lug, 1-Hole Type LCAF, Flexible Conductor, 350 kcmil Conductor, Die Code: P76, 35 kV, 1 in Stud, Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 4.37 in Overall Length, Standard/Flared Barrel, 0.84 in ID x 1.22 in OD x 1.85 in L Barrel, Specifications: 49.2 mm L Wire Strip, 90 deg C, 1.03 in Mounting Hole, Tin Plated Copper, Blue

Application

For use with flexible and extra flexible copper conductors

Standards

Features

Can be used with flex conductor class K, m and diesel locomotive
Flared entry prevents bent back strands when inserting fine strand conductor into barrel
Color coded barrels marked with Panduit® die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.84 in ID x 1.22 in OD x 1.85 in L
Barrel Type:	Standard
Color:	Blue
Conductor Size:	350 kcmil
Conductor Type:	Flexible
Country of Origin:	MX
Die Code:	P76
Material:	Tin Plated Copper
Mounting Hole Size:	1.03 in
Overall Length:	2-1/2 in
Series:	LCAF
Specifications:	49.2 mm L Wire Strip
Stud Size:	1 in
Temperature Rating:	90 deg C
Tongue Size:	1.54 in W x 0.22 in THK
Tongue Type:	Flared/Straight
Voltage Rating:	35 kV
