LCAF4/0-14H-X PAN

Name: LCAF4/0-14H-X PAN
Brand: Panduit
SKU: LCAF4/0-14H-X PAN
Availability: OutOfStock

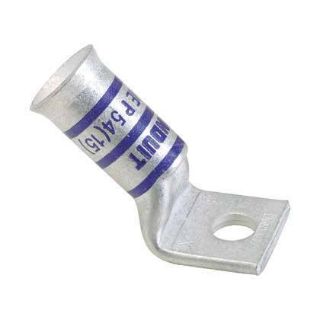

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCAF4/0-14H-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCAF4/0-14H-X, Lug Compression Connector, 1-Hole Type LCAF-H, 4/0 AWG Conductor, Die Code: P62, 35 kV, 1/4 in Stud, 45 deg Tongue, 1.17 in W x 0.14 in THK Tongue, 2.16 in Overall Length, Standard/Flared Barrel, 0.63 in ID x 0.91 in OD x 1.35 in L Barrel, Specifications: 1-7/16 in L Wire Strip, 90 deg C, Tin Plated Copper, Yellow

Application

For stranded copper conductors

Standards

Features

Can be used with flex conductor class: K, M and diesel locomotive
Flared entry prevents bent back strands when inserting fine strand conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:	0.63 in ID x 0.91 in OD x 1.35 in L
Barrel Type:	Standard/Flared
Color:	Yellow
Conductor Size:	4/0 AWG
Conductor Type:	Copper
Country of Origin:	MX
Die Code:	P62
Material:	Tin Plated Copper
Mounting Hole Size:	14-3/8 in
Overall Length:	2.16 in
Series:	LCAF
Specifications:	1-7/16 in L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	1.17 in W x 0.14 in THK
Tongue Type:	45 deg
Voltage Rating:	35 kV
