LCAF400-12F-6 PAN

Name: LCAF400-12F-6 PAN
Brand: Panduit
SKU: LCAF400-12F-6 PAN
Availability: OutOfStock

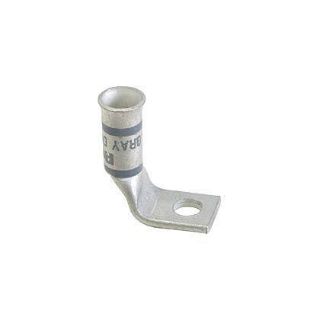

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCAF400-12F-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCAF400-12F-6, Compression Connector Lug, 1-Hole Type LCAF-F, Flexible Conductor, 400 kcmil Conductor, Die Code: P87, 35 kV, 1/2 in Stud, 90 deg Tongue, 1.77 in L x 1.7 in W x 0.26 in THK Tongue, 3.28 in Overall Length, Standard/Flared Barrel, 0.92 in ID x 1.34 in OD x 2.2 in L Barrel, Specifications: 57.2 mm L Wire Strip, 90 deg C, 0.53 in Mounting Hole, Tin Plated Copper, Brown, 3.37 in H Dimensions

Application

For stranded copper conductors

Standards

Features

Can be used with flex conductor class K, m and diesel locomotive
Flared entry prevents bent back strands when inserting fine strand conductor into barrel
Color coded barrels marked with Panduit® die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.92 in ID x 1.34 in OD x 2.2 in L
Barrel Type:	Standard/Flared
Color:	Brown
Conductor Size:	400 kcmil
Conductor Type:	Copper
Country of Origin:	MX
Die Code:	P87
Dimensions:	3.37 in H
Material:	Tin Plated Copper
Mounting Hole Size:	0.53 in
Overall Length:	3.28 in
Series:	LCAF
Specifications:	57.2 mm L Wire Strip
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	1.7 in W x 0.26 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
