LCAF6-56F-L PAN

Name: LCAF6-56F-L PAN
Brand: Panduit
SKU: LCAF6-56F-L PAN
Availability: OutOfStock

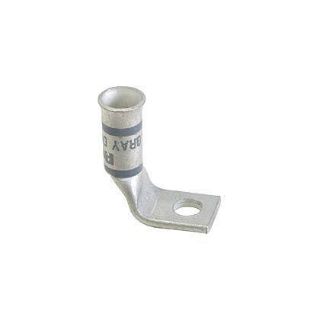

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCAF6-56F-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCAF6-56F-L, Compression Connector Lug, 1-Hole Type LCAF-F, Flexible Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 5/16 in Stud, 90 deg Tongue, 0.74 in L x 0.56 in W x 0.07 in THK Tongue, 1.18 in Overall Length, Standard/Flared Barrel, 0.22 in ID x 0.37 in OD x 0.81 in L Barrel, Specifications: 22.2 mm L Wire Strip, 90 deg C, 0.34 in Mounting Hole, Tin Plated Copper, Blue, 1.15 in H Dimensions

Application

For stranded copper conductors

Standards

Features

Can be used with flex conductor class K, m and diesel locomotive
Flared entry prevents bent back strands when inserting fine strand conductor into barrel
Color coded barrels marked with Panduit® die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.22 in ID x 0.37 in OD x 0.81 in L
Barrel Type:	Standard/Flared
Color:	Blue
Conductor Size:	6 AWG
Conductor Type:	Copper
Country of Origin:	MX
Die Code:	P24
Dimensions:	1.15 in H
Material:	Tin Plated Copper
Mounting Hole Size:	0.34 in
Overall Length:	1.18 in
Series:	LCAF
Specifications:	22.2 mm L Wire Strip
Stud Size:	5/16 in
Temperature Rating:	90 deg C
Tongue Size:	0.56 in W x 0.07 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
