LCAX250-14F-X PAN

Name: LCAX250-14F-X PAN
Brand: Panduit
SKU: LCAX250-14F-X PAN
Availability: OutOfStock

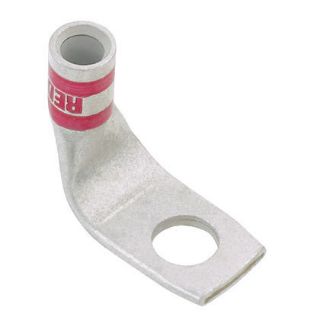

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCAX250-14F-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCAX250-14F-X, Compression Connector Lug, 1-Hole Type LCAX-F, Flexible Conductor, 250 kcmil Conductor, Die Code: P62, 35 kV, 1/4 in Stud, 90 deg Tongue, 1.28 in W x 0.17 in THK Tongue, 1.9 in Overall Length, Standard Barrel, 0.7 in ID x 0.88 in OD x 1.03 in L Barrel, Specifications: 27 mm L Wire Strip, 90 deg C, 0.27 in Mounting Hole, Tin Plated Copper, Yellow

Application

For class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

Features

Can be used with code conductor and flex conductor class G, H, I, K, m and diesel locomotive
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.7 in ID x 0.88 in OD x 1.03 in L
Barrel Type:	Standard
Color:	Yellow
Conductor Size:	250 kcmil
Conductor Type:	Flexible
Country of Origin:	MX
Die Code:	P62
Material:	Tin Plated Copper
Mounting Hole Size:	0.27 in
Overall Length:	1.9 in
Series:	LCAX
Specifications:	27 mm L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	1.28 in W x 0.17 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
