LCAX250-38H-X PAN

Product Details

Manufacturer:
Manufacturer part number:
LCAX250-38H-X
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

1-Hole

Description

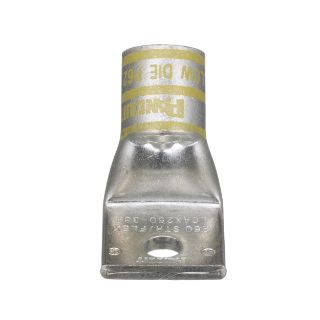

Panduit®, LCAX250-38H-X, Lug Compression Connector, 1-Hole Type LCAX-H, Stranded/Flex Copper Conductor, 250 kcmil Conductor, Die Code: P62, 35 kV, 3/8 in Stud, 45 deg Tongue, 1.28 in W x 0.17 in THK Tongue, 2.3 in Overall Length, Standard Barrel, 0.7 in ID x 0.88 in OD x 1.03 in L Barrel, Specifications: 1-1/16 in L Wire Strip, 90 deg C, Yellow

Standards

ABS Certified | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65/03 | NEBS Level 3 | RoHS Compliant | UL 486A/486B File No. E52164

Features

  • Can be used with code conductor and flex conductor class: G, H, I, K, M and diesel locomotive
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:0.7 in ID x 0.88 in OD x 1.03 in L
Barrel Type:Standard
Color:Yellow
Conductor Size:250 kcmil
Conductor Type:Flexible Copper
Country of Origin:MX
Die Code:P62
Material:Tin Plated Copper
Mounting Hole Size:10-5/8 in
Overall Length:2.3 in
Series:LCAX
Specifications:1-1/16 in L Wire Strip
Stud Size:3/8 in
Temperature Rating:90 deg C
Tongue Size:1.28 in W x 0.17 in THK
Tongue Type:45 deg
Voltage Rating:35 kV
