LCAX3/0-12H-X PAN

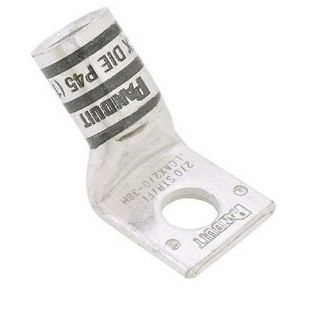

Picture of LCAX3/0-12H-X PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCAX3/0-12H-X
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$12.12 / EA
This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCAX3/0-12H-X, Lug Compression Connector, 1-Hole Type LCAX-H, Stranded/Flex Copper Conductor, 3/0 AWG Conductor, Die Code: P50, 35 kV, 1/2 in Stud, 45 deg Tongue, 1.06 in W x 0.14 in THK Tongue, 2.08 in Overall Length, Standard Barrel, 0.57 in ID x 0.71 in OD x 0.91 in L Barrel, Specifications: 1 in L Wire Strip, 90 deg C, Orange

Application

For class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | ASTM B545-97 Class C | UL 486A/486B File No. E52164 | CSA C22.2 File No. 65-13

Features

  • Can be used with code conductor and flex conductor class: G, H, I, K, M and diesel locomotive
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:0.57 in ID x 0.71 in OD x 0.91 in L
Barrel Type:Standard
Color:Orange
Conductor Size:3/0 AWG
Conductor Type:Flexible
Country of Origin:MX
Die Code:P50
Material:Tin Plated Copper
Mounting Hole Size:1 in
Overall Length:1.78 in
Series:LCAX
Specifications:1 in L Wire Strip
Stud Size:1/2 in
Temperature Rating:90 deg C
Tongue Size:1.06 in W x 0.14 in THK
Tongue Type:45 deg
Voltage Rating:35 kV
