LCAX350-38F-6 PAN

Name: LCAX350-38F-6 PAN
Brand: Panduit
SKU: LCAX350-38F-6 PAN
Price: 25.49 USD
Availability: OutOfStock

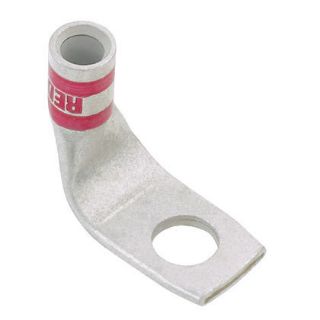

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCAX350-38F-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$25.49 / EA

This product has a minimum quantity of 6

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCAX350-38F-6, Compression Connector Lug, 1-Hole Type LCAX-F, Flexible Conductor, 350 kcmil Conductor, Die Code: P76, 35 kV, 3/8 in Stud, 90 deg Tongue, 1.01 in L x 1.54 in W x 0.22 in THK Tongue, 2.32 in Overall Length, Standard Barrel, 0.84 in ID x 1.06 in OD x 1.29 in L Barrel, Specifications: 34.9 mm L Wire Strip, 90 deg C, 0.41 in Mounting Hole, Tin Plated Copper, Blue, 2.39 in H Dimensions

Application

For class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

Features

Can be used with code conductor and flex conductor class G, H, I, K, m and diesel locomotive
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.84 in ID x 1.06 in OD x 1.29 in L
Barrel Type:	Standard
Color:	Blue
Conductor Size:	350 kcmil
Conductor Type:	Extra-Flexible/Flexible Copper
Country of Origin:	MX
Die Code:	P76
Dimensions:	2.39 in H
Material:	Tin Plated Copper
Mounting Hole Size:	0.41 in
Overall Length:	2.23 in
Series:	LCAX
Specifications:	34.9 mm L Wire Strip
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1.01 in L x 1.54 in W x 0.22 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
