LCAX500-58H-6 PAN

Name: LCAX500-58H-6 PAN
Brand: Panduit
SKU: LCAX500-58H-6 PAN
Availability: OutOfStock

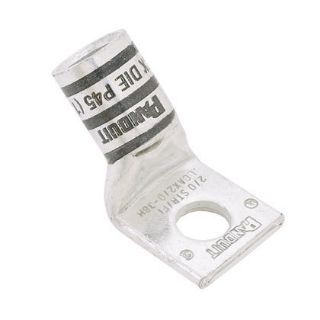

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCAX500-58H-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCAX500-58H-6, Compression Connector Lug, 1-Hole Type LCAX-H, Flexible Conductor, 500 kcmil Conductor, Die Code: P99, 35 kV, 5/8 in Stud, 45 deg Tongue, 1.89 in W x 0.26 in THK Tongue, 3.8 in Overall Length, Standard Barrel, 1.03 in ID x 1.3 in OD x 1.48 in L Barrel, Specifications: 39.7 mm L Wire Strip, 90 deg C, 0.66 in Mounting Hole, Tin Plated Copper, Pink

Application

For use with class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

Features

Can be used with code conductor and flex conductor class G, H, I, K, m and diesel locomotive
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	1.03 in ID x 1.3 in OD x 1.48 in L
Barrel Type:	Standard
Color:	Pink
Conductor Size:	500 kcmil
Conductor Type:	Flexible
Country of Origin:	MX
Die Code:	P99
Material:	Tin Plated Copper
Mounting Hole Size:	0.66 in
Overall Length:	3.8 in
Series:	LCAX
Specifications:	1-9/16 in L Wire Strip
Stud Size:	42.952 in
Temperature Rating:	90 deg C
Tongue Size:	1.89 in W x 0.26 in THK
Tongue Type:	45 deg
Voltage Rating:	35 kV
