LCAX8-38-L PAN

Name: LCAX8-38-L PAN
Brand: Panduit
SKU: LCAX8-38-L PAN
Price: 2.06 USD
Availability: OutOfStock

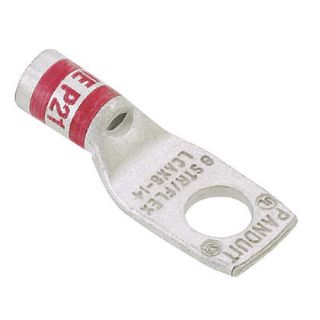

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCAX8-38-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$2.06 / EA

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCAX8-38-L, Compression Connector Lug, 1-Hole, Series: LCAX, Flexible/Code Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, 3/8 in Stud, Straight Tongue, 0.6 in W x 0.05 in THK Tongue, 1.42 in Overall Length, Standard Barrel, 0.18 in ID x 0.27 in OD x 0.42 in L Barrel, Specifications: 12.7 mm L Wire Strip, Tin Plated Finish, 90 deg C, 12.7 mm Mounting Hole, Copper, Red

Application

For use with flexible, extra flexible and code stranded copper conductors

Standards

Features

Color-coded bands for proper die selection and crimp placement
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Tin plated to inhibit corrosion
Inspection window to assure complete conductor insertion
Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.18 in ID x 0.27 in OD x 0.42 in L
Barrel Type:	Standard
Color:	Red
Conductor Size:	8 AWG
Conductor Type:	Flexible Copper
Country of Origin:	MX
Die Code:	P21
Material:	Copper
Mounting Hole Size:	12.7 mm
Overall Length:	1.42 in
Series:	LCAX
Specifications:	1/2 in L Wire Strip
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	0.6 in W x 0.05 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
