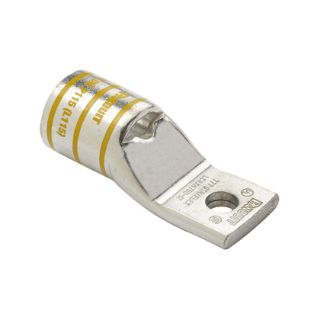

LCAXN500-38-6 PAN

Name: LCAXN500-38-6 PAN
Brand: Panduit
SKU: LCAXN500-38-6 PAN
Price: 48.87 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCAXN500-38-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$48.87 / EA

Description

Brand Name

Panduit®

Type

1-Hole Type LCAXN

Description

Panduit®, LCAXN500-38-6, Compression Connector Lug, 1-Hole Type LCAXN, Flexible Conductor, 500 kcmil Conductor, Die Code: P99, 35 kV, 3/8 in Stud, Narrow/Straight Tongue, 0.32 in W x 1.75 in THK Tongue, 3.84 in Overall Length, Standard Barrel, 1.03 in ID x 1.3 in OD x 1.75 in L Barrel, Specifications: 1-15/16 in L Wire Strip, 90 deg C, 0.41 in Mounting Hole, Tin Plated Copper, Pink

Application

For use with flexible, extra flexible and code stranded copper conductors

Standards

Features

Narrow tongue width for limited space applications
Can be used with code conductor and flex conductor class G, H, I, K, m and diesel locomotive
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	1.03 in ID x 1.3 in OD x 1.75 in L
Barrel Type:	Standard
Color:	Pink
Conductor Size:	500 kcmil
Conductor Type:	Flexible
Country of Origin:	IN
Die Code:	P99
Material:	Tin Plated Copper
Mounting Hole Size:	0.41 in
Overall Length:	3.84 in
Series:	LCAXN
Specifications:	1-15/16 in L Wire Strip
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	0.32 in W x 1.75 in THK
Tongue Type:	Narrow/Straight
Voltage Rating:	35 kV
