LCAXN750-12-3 PAN

Name: LCAXN750-12-3 PAN
Brand: Panduit
SKU: LCAXN750-12-3 PAN
Price: 54.73 USD
Availability: OutOfStock

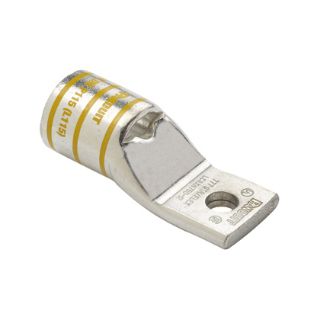

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCAXN750-12-3

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$54.73 / EA

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCAXN750-12-3, Lug Compression Connector, 1-Hole Type LCAXN, Stranded/Flex Copper Conductor, 750 kcmil Conductor, Die Code: P115, 35 kV, 1/2 in Stud, Narrow/Straight Tongue, 1.5 in W x 0.33 in THK Tongue, 3.94 in Overall Length, Standard Barrel, 1.17 in ID x 1.5 in OD x 1.66 in L Barrel, Specifications: 1-3/4 in L Wire Strip, 90 deg C, Yellow

Application

For diesel locomotive code conductor

Standards

Features

Narrow tongue width for limited space applications
Can be used with flex conductor class: diesel locomotive
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:	1.17 in ID x 1.5 in OD x 1.66 in L
Barrel Type:	Standard
Color:	Yellow
Conductor Size:	750 kcmil
Conductor Type:	Flexible Copper
Country of Origin:	MX
Die Code:	P115
Material:	Tin Plated Copper
Mounting Hole Size:	1-3/4 in
Overall Length:	3.94 in
Series:	LCAXN
Specifications:	1-3/4 in L Wire Strip
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	1.5 in W x 0.33 in THK
Tongue Type:	Narrow/Straight
Voltage Rating:	35 kV
