LCB1-56-E PAN

Name: LCB1-56-E PAN
Brand: Panduit
SKU: LCB1-56-E PAN
Price: 7.17 USD
Availability: OutOfStock

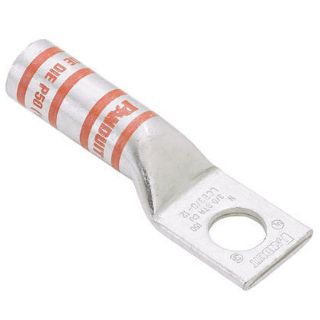

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCB1-56-E

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$7.17 / EA

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCB1-56-E, Compression Connector Lug, 1-Hole, Series: LCB, Copper Stranded Conductor, 1 AWG Conductor, Die Code: P37, 35 kV, 5/16 in Stud, Straight Tongue, 0.7 in W x 0.11 in THK Tongue, 2-1/2 in Overall Length, Long Barrel, 0.36 in ID x 0.47 in OD x 1.36 in L Barrel, Specifications: 1-7/16 in L Wire Strip, Tin Plated Finish, 90 deg C, 36.5 mm Mounting Hole, Green

Application

For use to provide permanent terminations for a variety of power and grounding applications

Standards

Features

Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin-plated to inhibit corrosion
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.36 in ID x 0.47 in OD x 1.36 in L
Barrel Type:	Long
Color:	Green
Conductor Size:	1 AWG
Conductor Type:	Copper Stranded
Country of Origin:	MX
Die Code:	P37
Material:	Copper
Mounting Hole Size:	1.44 in
Overall Length:	2-1/2 in
Series:	LCB
Specifications:	1-7/16 in L Wire Strip, Tin Plated Finish
Stud Size:	5/16 in
Temperature Rating:	90 deg C
Tongue Size:	0.7 in W x 0.11 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
