LCB1/0-12WF-X PAN

Name: LCB1/0-12WF-X PAN
Brand: Panduit
SKU: LCB1/0-12WF-X PAN
Availability: OutOfStock

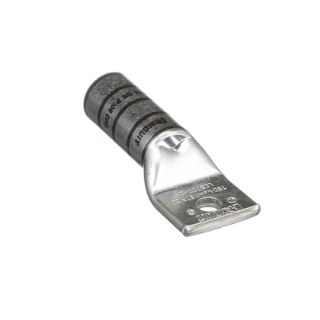

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCB1/0-12WF-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCB1/0-12WF-X, Compression Connectors Lug, 1-Stud Hole, Copper Conductor, 6 AWG Conductor, Die Code: P42, 35 kV, 1/2 in Stud, Standard Tongue, 20.32 mm W x 3.048 mm THK Tongue, 1.82 in Overall Length, Long Barrel with Inspection Window, 1.44 in L Barrel, Specifications: 90 deg Tongue, 90 deg C, 38.1 mm Mounting Hole, Pink

Standards

Features

Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin-coated to inhibit corrosion
UL Listed and CSA Certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies
UL Listed and CSA Certified for wide wire range-taking capability when crimped with Panduit® Uni-Die™ dieless crimping tools
Tested by telcordia - meets NEBS level 3
American bureau of shipping approved
Long barrel with inspection window

Specifications

Barrel Size:	1.44 in
Barrel Type:	Long
Color:	Pink
Conductor Size:	1/0 AWG
Conductor Type:	Copper
Country of Origin:	MX
Die Code:	P42
Material:	TiN Coated Copper
Mounting Hole Size:	0.53 in
Overall Length:	1.82 in
Series:	LCB
Specifications:	90 deg Tongue
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	0.8 in W x 0.12 in THK
Tongue Type:	90 deg Standard
Voltage Rating:	35 kV
