LCB2/0-38-X PAN

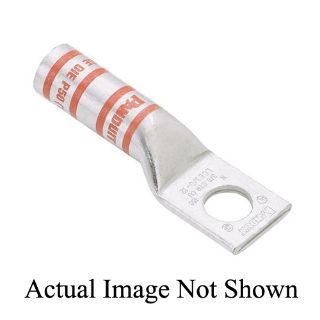

Picture of LCB2/0-38-X PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCB2/0-38-X
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$8.00 / EA

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCB2/0-38-X, Compression Connector Lug, 1-Hole Type LCB, Code Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 3/8 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 2.82 in Overall Length, Long Barrel, 0.45 in ID x 0.58 in OD x 1.49 in L Barrel, Specifications: 39.7 mm L Wire Strip, Tin Plated Finish, 90 deg C, 0.41 in Mounting Hole, Black

Application

For providing permanent terminations for a variety of power and grounding applications

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65-13 | NEBS Level 3 | RoHS Compliant | UL 486A/486B File No. E52164

Features

  • Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
  • Color-coded barrelS marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
  • Tin plated to inhibit corrosion
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
  • Without inspection window

Specifications

Barrel Size:0.45 in ID x 0.58 in OD x 1.49 in L
Barrel Type:Long
Color:Black
Conductor Size:2/0 AWG
Conductor Type:Code Copper
Country of Origin:MX
Die Code:P45
Material:Copper
Mounting Hole Size:0.41 in
Overall Length:2.82 in
Series:LCB
Specifications:1-9/16 in L Wire Strip
Stud Size:3/8 in
Temperature Rating:90 deg C
Tongue Size:0.85 in W x 0.13 in THK
Tongue Type:Straight
Voltage Rating:35 kV
