LCB4-38-L PAN

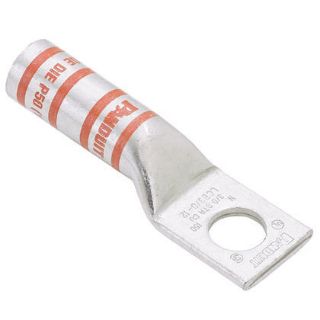

Picture of LCB4-38-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCB4-38-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3.42 / EA
This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCB4-38-L, Lug Compression Connector, 1-Hole Type LCB, 4 AWG Conductor, Die Code: P29, 35 kV, 3/8 in Stud, Straight Tongue, 0.62 in W x 0.07 in THK Tongue, 2.17 in Overall Length, Long Barrel, 0.76 in ID x 0.95 in OD x 1.05 in L Barrel, Specifications: 1-1/8 in L Wire Strip, 90 deg C, Tin Plated Copper, Gray

Application

For stranded copper conductors

Standards

ABS Certified | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65/13 | NEBS Level 3 | RoHS Compliant | UL 486A/486B File No. E52164

Features

  • Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
  • Tin plated to inhibit corrosion
  • UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies
  • Without inspection window

Specifications

Barrel Size:0.28 in ID x 0.38 in OD x 1.05 in L
Barrel Type:Long
Color:Gray
Conductor Size:4 AWG
Conductor Type:Solid/Stranded Copper
Country of Origin:MX
Die Code:P29
Material:Tin Plated Copper
Mounting Hole Size:1.13 in
Overall Length:2.17 in
Series:LCB
Specifications:1-1/8 in L Wire Strip
Stud Size:3/8 in
Temperature Rating:90 deg C
Tongue Size:0.62 in W x 0.07 in THK
Tongue Type:Straight
Voltage Rating:35 kV

Customers who bought this item also bought

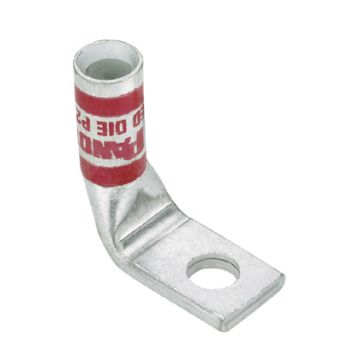

Picture of LCA4-10F-L PAN
