LCB6-10-L PAN

Name: LCB6-10-L PAN
Brand: Panduit
SKU: LCB6-10-L PAN
Price: 2.72 USD
Availability: OutOfStock

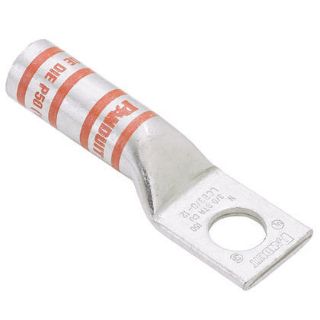

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCB6-10-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$2.72 / EA

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCB6-10-L, Lug Compression Connector, 1-Hole Type LCB, 6 AWG Conductor, Die Code: P24, 35 kV, #10 Stud, Straight Tongue, 0.45 in W x 0.09 in THK Tongue, 1.84 in Overall Length, Long Barrel, 0.84 in ID x 1.06 in OD x 1.07 in L Barrel, Specifications: 1-1/8 in L Wire Strip, 90 deg C, Tin Plated Copper, Blue

Application

For stranded copper conductors

Standards

Features

Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin plated to inhibit corrosion
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies
Without inspection window

Specifications

Barrel Size:	0.22 in ID x 0.31 in OD x 1.07 in L
Barrel Type:	Long
Color:	Blue
Conductor Size:	6 AWG
Conductor Type:	Stranded Copper
Country of Origin:	MX
Die Code:	P24
Material:	Tin Plated Copper
Mounting Hole Size:	1.13 in
Overall Length:	1.84 in
Series:	LCB
Specifications:	1-1/8 in L Wire Strip
Stud Size:	#10
Temperature Rating:	90 deg C
Tongue Size:	0.45 in W x 0.09 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
