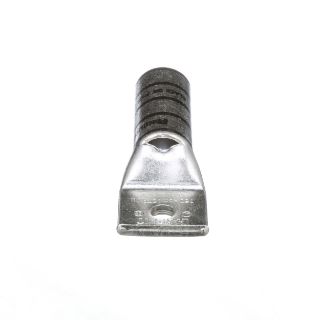

LCB750-12W-6 PAN

Name: LCB750-12W-6 PAN
Brand: Panduit
SKU: LCB750-12W-6 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCB750-12W-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCB750-12W-6, Lug Compression Connector, 1-Hole Type LCB-W, 750 kcmil Conductor, Die Code: P106, 35 kV, 1/2 in Stud, Straight Tongue, 1.89 in W x 0.26 in THK Tongue, 5.03 in Overall Length, Long Barrel, 0.22 in ID x 0.31 in OD x 2.88 in L Barrel, Specifications: 2 15/16 in L Wire Strip, 90 deg C, Tin Plated Copper, Black

Application

For use with stranded copper conductors

Standards

Features

Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
Inspection window to visually assure full conductor insertion
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Tin plated to inhibit corrosion
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:	0.22 in ID x 0.31 in OD x 2.88 in L
Barrel Type:	Long
Color:	Black
Conductor Size:	750 kcmil
Conductor Type:	Stranded Copper
Country of Origin:	MX
Die Code:	P106
Material:	Copper
Mounting Hole Size:	2.94 in
Overall Length:	3.71 in
Series:	LCB
Specifications:	2 15/16 in L Wire Strip
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	1.89 in W x 0.26 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
