LCBX1-38-X PAN

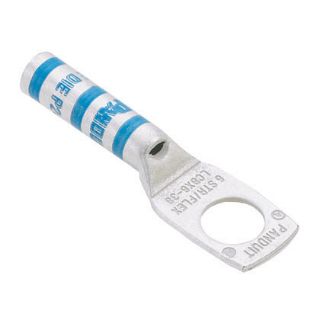

Picture of LCBX1-38-X PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCBX1-38-X
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$7.24 / EA
This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCBX1-38-X, Compression Connector Lug, 1-Hole Type LCBX, Flex Copper Conductor, 1 AWG Conductor, Die Code: P37, 3/8 in Stud, Straight Tongue, 0.76 in W x 0.12 in THK Tongue, 2.57 in Overall Length, Long/Standard Barrel, 0.39 in ID x 0.52 in OD x 1.44 in L Barrel, Specifications: 1-1/2 in L Wire Strip, Tin Plated Finish, 90 deg C, Green

Standards

American Bureau Approved | ARRA Compliant | ASTM B545-97 | Buy American Act Compliant | Class C | CSA C22.2 File No. 65-13 | NEBS 3 Class C | RoHS Compliant | UL 486A/486B File No. E52164

Features

  • Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • For use with flexible, extra-flexible and code stranded copper conductors
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:0.39 in ID x 0.52 in OD x 1.44 in L
Barrel Type:Long
Color:Green
Conductor Size:1 AWG
Conductor Type:Flex Copper
Country of Origin:MX
Die Code:P37
Material:Copper
Mounting Hole Size:1-1/2 in
Overall Length:2.57 in
Series:LCBX
Specifications:1-1/2 in L Wire Strip
Stud Size:3/8 in
Temperature Rating:90 deg C
Tongue Size:0.76 in W x 0.12 in THK
Tongue Type:Straight
Voltage Rating:35 kV
