LCBX2/0-12-X PAN

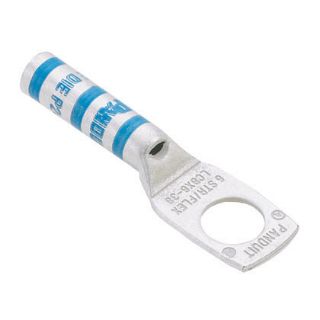

Picture of LCBX2/0-12-X PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCBX2/0-12-X
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request
This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

1-Hole Flex

Description

Panduit®, LCBX2/0-12-X, Compression Connector Lug, 1-Hole Type LCBX, Flex Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 1/2 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 2.96 in Overall Length, Long/Standard Barrel, 0.51 in ID x 0.64 in OD x 1.5 in L Barrel, Specifications: 1.56 in L Wire Strip, Tin Plated Finish, 90 deg C, Black

Standards

American Bureau Approved | ARRA Compliant | ASTM B545-97, Class C | Buy American Act Compliant | CSA C22.2 File No. 65-13 | NEBS 3 Class C | RoHS Compliant | UL 486A/486B File No. E52164

Features

  • Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • For use with flexible, extra-flexible and code stranded copper conductors
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:0.51 in ID x 0.64 in OD x 1.5 in L
Barrel Type:Long
Color:Black
Conductor Size:2/0 AWG
Conductor Type:Copper
Country of Origin:MX
Die Code:P45
Material:Copper
Mounting Hole Size:15-5/8 in
Overall Length:2.96 in
Series:LCBX
Specifications:1.56 in L Wire Strip
Stud Size:1/2 in
Temperature Rating:90 deg C
Tongue Size:0.96 in W x 0.13 in THK
Tongue Type:Straight
Voltage Rating:35 kV
