LCBX4/0-12-X PAN

Name: LCBX4/0-12-X PAN
Brand: Panduit
SKU: LCBX4/0-12-X PAN
Price: 13.11 USD
Availability: OutOfStock

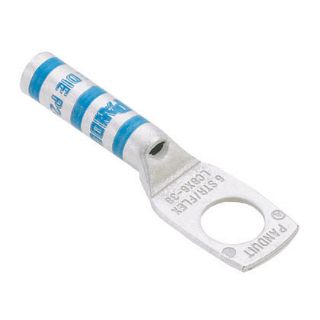

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCBX4/0-12-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$13.11 / EA

This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LCBX4/0-12-X, Compression Connector Lug, 1-Hole Type LCBX, Flex Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 1/2 in Stud, Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 3.85 in Overall Length, Long/Standard Barrel, 0.65 in ID x 0.81 in OD x 2.24 in L Barrel, Specifications: 2.31 in L Wire Strip, Tin Plated Finish, 90 deg C, Purple

Standards

Features

Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.65 in ID x 0.81 in OD x 2.24 in L
Barrel Type:	Long
Color:	Purple
Conductor Size:	4/0 AWG
Conductor Type:	Flex Copper
Country of Origin:	MX
Die Code:	P54
Material:	Copper
Mounting Hole Size:	23-1/8 in
Overall Length:	3.85 in
Series:	LCBX
Specifications:	2.31 in L Wire Strip
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	1.19 in W x 0.16 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
