LCBX6-14H-L PAN

Name: LCBX6-14H-L PAN
Brand: Panduit
SKU: LCBX6-14H-L PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCBX6-14H-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

1-Hole

Description

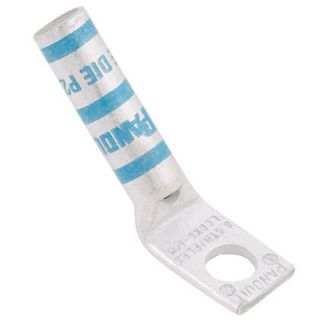

Panduit®, LCBX6-14H-L, Lug Compression Connector, 1-Hole Type LCBX-H, 6 AWG Conductor, Die Code: P24, 1/4 in Stud, 45 deg Tongue, 0.48 in W x 0.08 in THK Tongue, 1.56 in Overall Length, Long/Standard Barrel, 0.22 in ID x 0.31 in OD x 1.07 in L Barrel, Specifications: 1.13 in L Wire Strip, 90 deg C, Tin Plated Copper, Blue

Application

For class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

Features

Long barrel maximizes number of crimps and provides premium wire pullout strength and electrical performance
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
Color coded barrel
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
6 AWG class B, C, G, H, I, K, M and DLO conductor

Specifications

Barrel Size:	0.22 in ID x 0.31 in OD x 1.07 in L
Barrel Type:	Long
Color:	Blue
Conductor Size:	6 AWG
Conductor Type:	Extra-Flexible/Flexible Copper
Country of Origin:	MX
Die Code:	P24
Material:	Tin Plated Copper
Mounting Hole Size:	1-1/8 in
Overall Length:	1.56 in
Series:	LCBX
Specifications:	1.13 in L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.48 in W x 0.08 in THK
Tongue Type:	45 deg
Voltage Rating:	35 kV
