LCC1-12W-E PAN

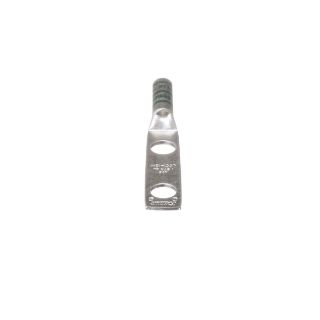

Name: LCC1-12W-E PAN
Brand: Panduit
SKU: LCC1-12W-E PAN
Price: 11.10 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCC1-12W-E

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$11.10 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCC1-12W-E, Compression Connector Lug, 2-Hole Type LCC-W, 1 AWG Conductor, Die Code: P37, 35 kV, 1/2 in Stud, Straight Tongue, 0.75 in W x 0.09 in THK Tongue, 4.63 in Overall Length, Long Barrel, 0.36 in ID x 0.47 in OD x 1.36 in L Barrel, Specifications: 36.5 mm L Wire Strip, 90 deg C, 0.53 in Mounting Hole, Tin Plated Copper, Green

Application

For use with stranded copper conductors

Standards

Features

Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
Inspection window to visually assure full conductor insertion
Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Tin plated to inhibit corrosion
For use with stranded copper conductors
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.36 in ID x 0.47 in OD x 1.36 in L
Barrel Type:	Long
Color:	Green
Conductor Size:	1 AWG
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P37
Material:	Tin Plated Copper
Mounting Hole Size:	0.53 in
Overall Length:	4.63 in
Series:	LCC-W
Specifications:	1-3/4 in Stud Hole Spacing, 1-7/16 in L Wire Strip
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	0.75 in W x 0.09 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
