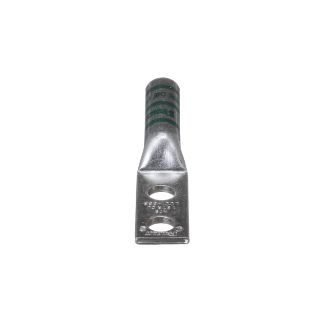

Actual Product May Vary From Image

LCC1-56B-E PAN

Name: LCC1-56B-E PAN
Brand: Panduit
SKU: LCC1-56B-E PAN
Availability: OutOfStock

Panduit® LCC1-56B-E 2-Hole Type LCC Lug Compression Connector, 1 AWG Conductor, Die Code: P37, 5/16 in Stud, Tin Plated Copper

Manufacturer: Panduit

Manufacturer part number: LCC1-56B-E

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

This product has a minimum quantity of 20

Qty:

Product Details

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCC1-56B-E, Lug Compression Connector, 2-Hole Type LCC, 1 AWG Conductor, Die Code: P37, 35 kV, 5/16 in Stud, Straight Tongue, 0.7 in W x 0.11 in THK Tongue, 3.25 in Overall Length, Long Barrel, 1.36 in L Barrel, Specifications: 3/4 in Stud Hole Spacing, 1.44 in L Wire Strip, 90 deg C, Tin Plated Copper, Green

Standards

Features

Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin plated to inhibit corrosion
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies
Without inspection window

Specifications

Barrel Size:	1.36 in L
Barrel Type:	Long
Color:	Green
Conductor Size:	1 AWG
Conductor Type:	Copper
Country of Origin:	MX
Die Code:	P37
Material:	Copper
Mounting Hole Size:	1.44 in
Overall Length:	3-1/4 in
Series:	LCC
Specifications:	1-7/16 in L Wire Strip, 3/4 in Stud Hole Spacing, Tin Plated Finish
Stud Size:	42.491 in
Temperature Rating:	90 deg C
Tongue Size:	0.7 in W x 0.11 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
