LCC10-14JAWF-L PAN

Name: LCC10-14JAWF-L PAN
Brand: Panduit
SKU: LCC10-14JAWF-L PAN
Price: 14.26 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCC10-14JAWF-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$14.26 / EA

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

2-Hole

Description

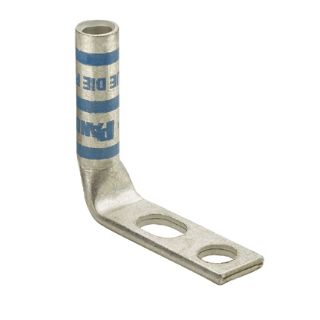

Panduit®, LCC10-14JAWF-L, Lug Compression Connector, 2-Hole Type LCC-WF, Solid/Stranded Copper Conductor, 14 to 10 AWG, 12 to 10 AWG Conductor, 35 kV, 1/4 in Stud, 90 deg Tongue, 0.42 in W x 0.05 in THK Tongue, 1.56 in Overall Length, Long Barrel, 0.53 in L Barrel, Specifications: 0.5 to 0.63 in Stud Hole Spacing, 9/16 in L Wire Strip, 90 deg C

Standards

Features

Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
14 to 10 AWG stranded, 12 to 10 AWG solid
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
For use with stranded copper conductors
Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance

Specifications

Barrel Size:	0.13 in ID x 0.22 in OD x 0.53 in L
Barrel Type:	Long
Conductor Size:	14 to 10 AWG, 12 to 10 AWG
Conductor Type:	Solid/Stranded Copper
Country of Origin:	MX
Material:	Tin Plated Copper
Mounting Hole Size:	42.614 in
Overall Length:	1.56 in
Series:	LCC-WF
Specifications:	0.5 to 0.63 in Stud Hole Spacing, 9/16 in L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.42 in W x 0.05 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
