LCC2/0-12DF-X PAN

Name: LCC2/0-12DF-X PAN
Brand: Panduit
SKU: LCC2/0-12DF-X PAN
Availability: OutOfStock

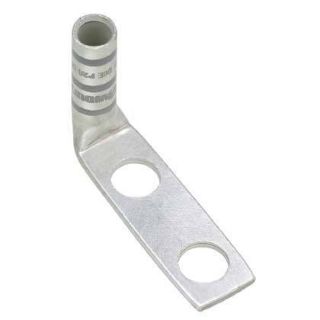

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCC2/0-12DF-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCC2/0-12DF-X, Compression Connector Lug, 2-Hole Type LCC-F, 2/0 AWG Conductor, Die Code: P45, 35 kV, 1/2 in Stud, 90 deg Tongue, 0.85 in W x 0.13 in THK Tongue, 2.85 in Overall Length, Long Barrel, 0.44 in ID x 0.57 in OD x 1.5 in L Barrel, Specifications: 39.7 mm L Wire Strip, 90 deg C, 0.53 in Mounting Hole, Tin Plated Copper, Black, 2.24 in H Dimensions

Application

For stranded copper conductors

Standards

Features

Long barrel maximizes number of crimps and provides premium wire pullout strength and electrical performance
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin plated to inhibit corrosion
Without inspection window lug
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.44 in ID x 0.57 in OD x 1.5 in L
Barrel Type:	Long
Color:	Black
Conductor Size:	2/0 AWG
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P45
Dimensions:	2.24 in H
Material:	Tin Plated Copper
Mounting Hole Size:	0.53 in
Overall Length:	2.85 in
Series:	LCC
Specifications:	39.7 mm L Wire Strip
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	0.85 in W x 0.13 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
