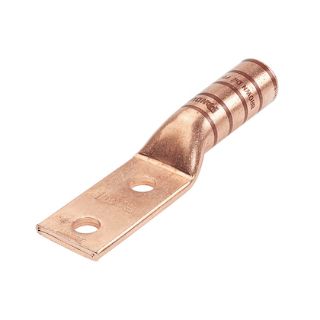

LCC250-12-B-X PAN

Name: LCC250-12-B-X PAN
Brand: Panduit
SKU: LCC250-12-B-X PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCC250-12-B-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

2-Hole Grounding

Description

Panduit®, LCC250-12-B-X, Compression Grounding Lug, 2-Hole Type LCC-B Direct Burial, 250 kcmil Conductor, Die Code: P62, 35 kV, 1/2 in Stud, Standard Straight Tongue, 1.17 in W x 0.14 in THK Tongue, 5.23 in Overall Length, Long Barrel, 0.63 in ID x 0.77 in OD x 1.61 in L Barrel, Specifications: 42.9 mm L Wire Strip, 90 deg C, 0.53 in Mounting Hole, Tin Plated Copper, Yellow

Application

For use with stranded copper conductors

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 65-13 | RoHS Compliant | UL Listed

Features

Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin-plated to inhibit corrosion
Without inspection window lug
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.63 in ID x 0.77 in OD x 1.61 in L
Barrel Type:	Long
Color:	Yellow
Conductor Size:	250 kcmil
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P62
Material:	Copper
Mounting Hole Size:	0.53 in
Overall Length:	5.23 in
Series:	LCC
Specifications:	42.9 mm L Wire Strip
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	1.17 in W x 0.14 in THK
Tongue Type:	Standard Straight
Voltage Rating:	35 kV
