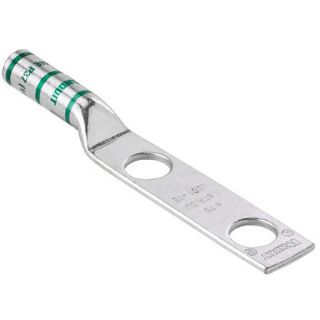

LCC4-14B-L PAN

Name: LCC4-14B-L PAN
Brand: Panduit
SKU: LCC4-14B-L PAN
Price: 8.19 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCC4-14B-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$8.19 / EA

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCC4-14B-L, Lug Compression Connector, 2-Hole Type LCC, Solid/Stranded Copper Conductor, 4 to 3 AWG, 2 AWG Conductor, Die Code: P29, 1/4 in Stud, Straight Tongue, 0.55 in W x 0.09 in THK Tongue, 2.7 in Overall Length, Long Barrel, 0.28 in ID x 0.38 in OD x 1.05 in L Barrel, Specifications: 3/4 in Stud Hole Spacing, 1-1/4 in L Wire Strip, 90 deg C, Gray

Standards

Features

Long barrel maximizes number of crimps and provides premium wire pullout strength and electrical performance
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin-plated to inhibit corrosion
For use with stranded copper conductors
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.28 in ID x 0.38 in OD x 1.05 in L
Barrel Type:	Long
Color:	Gray
Conductor Size:	4 to 3 AWG, 2 AWG
Conductor Type:	Solid/Stranded Copper
Country of Origin:	MX
Die Code:	P29
Material:	Tin Plated Copper
Mounting Hole Size:	1.13 in
Overall Length:	2.7 in
Series:	LCC
Specifications:	1-1/8 in L Wire Strip, 3/4 in Stud Hole Spacing
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.55 in W x 0.09 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
