LCC4/0-00-X PAN

Name: LCC4/0-00-X PAN
Brand: Panduit
SKU: LCC4/0-00-X PAN
Price: 15.38 USD
Availability: OutOfStock

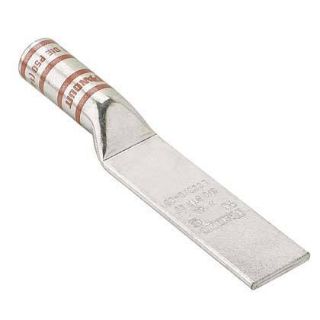

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCC4/0-00-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$15.38 / EA

Description

Brand Name

Panduit®

Type

Type LCC-00 Blank

Description

Panduit®, LCC4/0-00-X, Compression Connector Lug, Type LCC-00 Blank, 4/0 AWG Conductor, Die Code: P54, 35 kV, Straight Tongue, 3 in L x 1.06 in W x 0.14 in THK Tongue, 5.13 in Overall Length, Long/Standard Barrel, 0.57 in ID x 0.71 in OD x 1.56 in L Barrel, Specifications: 41 mm L Wire Strip, 90 deg C, Tin Plated Copper, Purple

Application

For use with stranded copper conductors

Standards

Features

Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin-plated to inhibit corrosion
For use with stranded copper conductors
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.57 in ID x 0.71 in OD x 1.56 in L
Barrel Type:	Long/Standard
Color:	Purple
Conductor Size:	4/0 AWG
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P54
Material:	Copper
Mounting Hole Size:	1.63 in
Overall Length:	5.13 in
Series:	LCC-00
Specifications:	1.63 in L Wire Strip, Tin Plated Finish
Temperature Rating:	90 deg C
Tongue Size:	3 in L x 1.06 in W x 0.14 in THK
Tongue Type:	Blank/Straight
Voltage Rating:	35 kV
