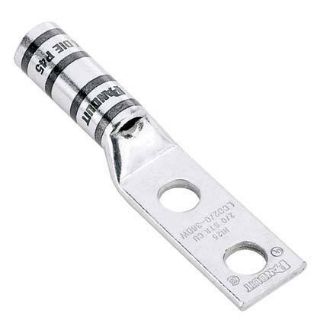

Actual Product May Vary From Image

LCC4/0-38W-X PAN

Name: LCC4/0-38W-X PAN
Brand: Panduit
SKU: LCC4/0-38W-X PAN
Price: 14.09 USD
Availability: OutOfStock

Panduit® LCC4/0-38W-X 2-Hole Type LCC-W Lug Compression Connector, 4/0 AWG Conductor, Die Code: P54, 3/8 in Stud, Tin Plated Copper

Manufacturer: Panduit

Manufacturer part number: LCC4/0-38W-X

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$14.09

Qty:

Product Details

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCC4/0-38W-X, Lug Compression Connector, 2-Hole Type LCC-W, 4/0 AWG Conductor, Die Code: P54, 35 kV, 3/8 in Stud, Straight Tongue, 1.06 in W x 0.14 in THK Tongue, 4.56 in Overall Length, Long Barrel, 0.57 in ID x 0.71 in OD x 1.56 in L Barrel, Specifications: 1-3/4 in Stud Hole Spacing, 1.63 in L Wire Strip, 90 deg C, Tin Plated Copper, Purple

Application

Stranded Copper Code Conductors Applications

Standards

Features

Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
Inspection window to visually assure full conductor insertion
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Tin plated to inhibit corrosion
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:	0.57 in ID x 0.71 in OD x 1.56 in L
Barrel Type:	Long
Color:	Purple
Conductor Size:	4/0 AWG
Conductor Type:	Stranded Copper
Country of Origin:	MX
Die Code:	P54
Material:	Tin Plated Copper
Mounting Hole Size:	1.63 in
Overall Length:	4.56 in
Series:	LCC
Specifications:	1-3/4 in Stud Hole Spacing
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1.06 in W x 0.14 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
