LCC600-12W-6 PAN

Name: LCC600-12W-6 PAN
Brand: Panduit
SKU: LCC600-12W-6 PAN
Price: 42.54 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCC600-12W-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$42.54 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

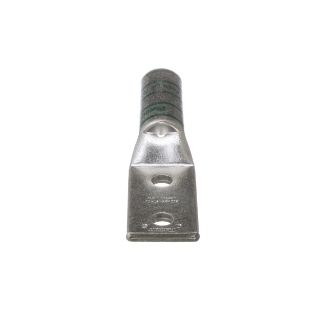

Panduit®, LCC600-12W-6, Compression Connector Lug, 2-Hole Type LCC-W, Stranded Copper Conductor, 600 kcmil Conductor, Die Code: P94, 35 kV, 1/2 in Stud, Straight Tongue, 1.7 in W x 0.26 in THK Tongue, 6.36 in Overall Length, Long Barrel, 0.92 in ID x 1.19 in OD x 2.69 in L Barrel, Specifications: 1-3/4 in Hole Spacing, 2-3/4 in L Wire Strip, Tin Plated Finish, 90 deg C, Green

Standards

Features

Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
Inspection window to visually assure full conductor insertion
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Tin plated to inhibit corrosion
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:	0.92 in ID x 1.19 in OD x 2.69 in L
Barrel Type:	Long
Color:	Green
Conductor Size:	600 kcmil
Conductor Type:	Stranded Copper
Country of Origin:	MX
Die Code:	P94
Material:	Copper
Mounting Hole Size:	2-3/4 in
Overall Length:	6.36 in
Series:	LCC-W
Specifications:	1-3/4 in Hole Spacing, 2-3/4 in L Wire Strip, Tin Plated Finish
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	1.7 in W x 0.26 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
