LCCF1/0-38D-X PAN

Name: LCCF1/0-38D-X PAN
Brand: Panduit
SKU: LCCF1/0-38D-X PAN
Availability: OutOfStock

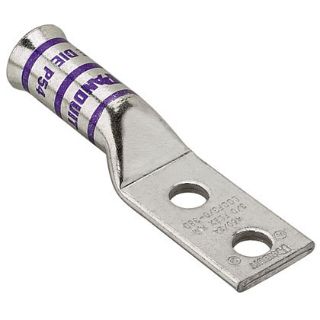

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCCF1/0-38D-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCCF1/0-38D-X, Lug Compression Connector, 2-Hole Type LCCF, 1/0 AWG Conductor, Die Code: P45, 35 kV, 3/8 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 3.82 in Overall Length, Flared/Long Barrel, 0.45 in ID x 0.67 in OD x 1.5 in L Barrel, Specifications: 1 in Stud Hole Spacing, 1-9/16 in L Wire Strip, 90 deg C, Tin Plated Copper, Black

Application

For diesel locomotive

Standards

Features

Can be used with code conductor and flex conductor class: G, H, I, K, M and diesel locomotive
Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
Flared entry prevents bent back strands when inserting fine strand conductor into barrel
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin plated to inhibit corrosion
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies
Without inspection window

Specifications

Barrel Size:	0.45 in ID x 0.67 in OD x 1.5 in L
Barrel Type:	Flared/Long
Color:	Black
Conductor Size:	1/0 AWG
Conductor Type:	Extra-Flexible/Flexible Copper
Country of Origin:	MX
Die Code:	P45
Material:	Tin Plated Copper
Mounting Hole Size:	1.56 in
Overall Length:	3.82 in
Series:	LCCF
Specifications:	1 in Stud Hole Spacing, 1-9/16 in L Wire Strip
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	0.85 in W x 0.13 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
