LCCF2/0-14B-X PAN

Name: LCCF2/0-14B-X PAN
Brand: Panduit
SKU: LCCF2/0-14B-X PAN
Price: 13.12 USD
Availability: OutOfStock

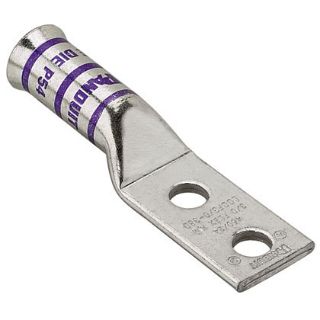

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCCF2/0-14B-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$13.12 / EA

This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCCF2/0-14B-X, Compression Connector Lug, 2-Hole, Series: LCCF, Copper Conductor, 2/0 AWG Conductor, Die Code: P50, 35 kV, 1/4 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 3.56 in Overall Length, Flared/Long Barrel, 0.51 in ID x 0.73 in OD x 1.5 in L Barrel, Specifications: 3/4 in Stud Hole Spacing, Tin Plated Finish, 90 deg C, 39.7 mm Mounting Hole, Orange

Application

For flexible and extra flexible copper conductors

Standards

Features

Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin plated to inhibit corrosion
Without inspection window lug
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Long, flared barrel
Without inspection window

Specifications

Barrel Size:	0.51 in ID x 0.73 in OD x 1.5 in L
Barrel Type:	Flared/Long
Color:	Orange
Conductor Size:	2/0 AWG
Conductor Type:	Copper
Country of Origin:	MX
Die Code:	P50
Material:	Copper
Mounting Hole Size:	1.56 in
Overall Length:	3.56 in
Series:	LCCF
Specifications:	3/4 in Stud Hole Spacing
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.96 in W x 0.13 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
